DC710C2 Flue Gas Analyser Kit + FREE 725L Gas Sniffer + FREE 50 Volt Stick
£490.00
Exclusive specials for HVP Gold Membership: DC710C1 Flue Gas Analyser Kit includes DC710 Unit, SP620 Differential Pressure Meter Smart Probe, Charger, A770 Probe & Carry Case. Plus FREE 725L Gas Sniffer + FREE 50 Volt Stick! When Combined with Smartphone App: Easy, Affordable & Remote Operation!
In stock
Description

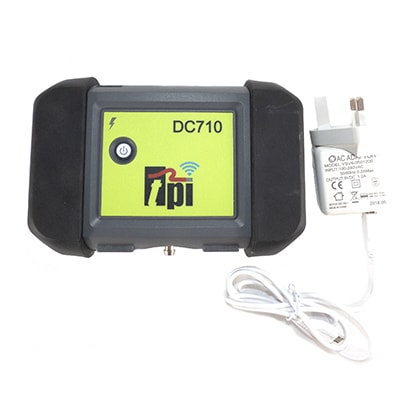

- Kit includes DC710 Unit, SP620 Differential Pressure Meter Smart Probe, USB Charger, A770 Combustion Flue Probe w/Temperature & Carry Case. PLUS free 725L Gas Sniffer and FREE 50 Volt Stick!
- Use for BS7967 remotely via Bluetooth using your Apple or Android Smartphone or tablet.
- The free TPI View app provides on-site reports which can be stored in Job Management and/or emailed without the need for paper or printers.
- Each report created is Colour Coded “In/Out of Spec” with GPS Location and Time Date Stamp
- 24-Hour real-time clock for accurate documentation.
- Powerful magnetic and/or hook mounting.
- Durable, rugged and sealed housing.
Try it Risk Free!
Specifications
| DC710 Flue Gas Analyser Specifications | |
|---|---|
| Carbon Monoxide (CO) Range | 0 to 10,000ppm; +/-5ppm or 5% of reading whichever is greater |
| Oxygen (O2) Range | 0 to 25%; +/-0.3% O2 |
| Temperature Range | -50°C to 1000°C (-58°F to 1832°F); +/- 0.3% of reading +1°C (+/-0.3% of reading +2°F) |
| Pre-programmed Fuels | Natural Gas, LPG, Light Oil, Heavy Oil, Bituminous Coal, Coke, Butane, Wood, Bagasse |
| Battery Type | Rechargeable Li-ion (3.7V/2600mA) |
| Battery Life | >6 hours typical |
| Charger Input | USB Connection |
| Operating Temperature | -10°C to 50°C (-14°F to 122°F) |
| Dimensions (W x L x D) | 150mm x 100mm x 58mm (5.9” x 3.9” x 2.3”) |
| Weight | 490g (1.1 lb) |
| Gas Sensor Type | Electrochemical field replaceable smart sensors (O2 and CO) |
| Wireless Communication | Bluetooth LE (BLE) |
| SP620 Smart Probe Differential Pressure Meter Specifications | |
|---|---|
| Input Type | Dual input differential |
| Connection Type | 1/4 inch barb |
| Measurement Range | -150 mbar to +150mbar (-60 inH2O to +60 inH2O) |
| Accuracy | +/-0.05 mbar (0 to 1 mbar) / +/-(1.5% + 20 digits) (> 1 mbar) +/-0.02 inH2O (0 to 1 inH2O) / +/-(1.5% + 20 digits) (> 1 inH2O) |
| Resolution | 0.01 mbar / 0.01 inH2O |
| Units of Measure | 7 Units (mbar, inH2O, kPa, PSI, mmHg, inHg, mmH2O) |
| Operating Temperature | -20⁰C to 50⁰C (-4⁰F to 122⁰F) |
| Communication | Bluetooth version 4.2 (Use with TPI Smart Probe App) |
| Battery Type | AAA x 3 |
| Battery Life | 80 hours typical |
