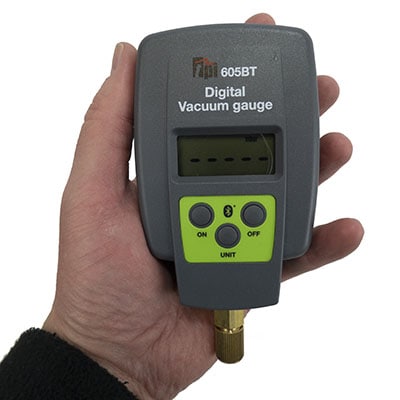

Smart Digital Vacuum Gauge (25~12,000m in 7 international units) with Connectivity to FREE, subscription FREE View app.
Features:
- Single input with 12000 to 15 micron range.
- Seven units of measure (Microns, PSI, InHg, mBar, Pascals, Torr, mTorr)
- Display – 5 digit.
- Auto Off – Conserve battery power.
- Built in hanging hook and back magnets
- Over pressure protected to 300 psi
- Cleanable sensor
Applications:
- Verify vacuum before charging refrigerant system
- Prevents moisture and air from remaining in the system
- Finds small leaks
TPI View App

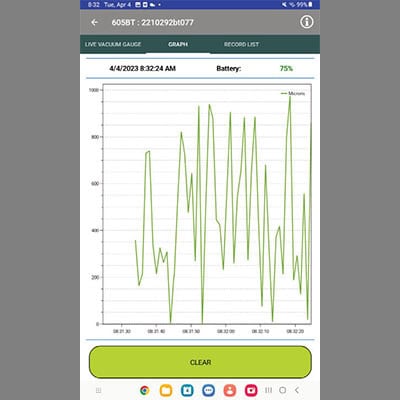

Use the TPI app to display real time readings and record tests.
The app allows the engineer to create unique jobs & the information to be stored and reports sent via email.
| 605BT Digital Vacuum Gauge Specifications | |
|---|---|
| Measurement Range: | Dual input differential12000 to 15 micron |
| Display: | 5 Digit LCD |
| Resolution (max): | 1 micron |
| Accuracy: | (+/-10% of reading + 10 digits) |
| Functions: | Selectable units of measure |
| Units of Measure: | 7 Units (Microns, PSI, InHg, mBar, Pascals, Torr, mTorr) |
| Battery Type: | 9V alkaline |
| Battery Life: | 200 hours (Typical) |
| Auto Power Off: | 10 minutes when measurement is above 12000 microns |
| Standard Accessories (Included): | 9V Alkaline battery (A009A) |
| Communication: | Bluetooth version 4.2 (Use with TPI Smart Probe App) |
